Collecting up the Software bits:

         We've talked about how most of the pieces work, now it's time to collect them all together, get them talking and see if we can get a hardware in the loop simulation running. Here is what you'll need:

Flightgear 1.9.1 Note Flightgear 2.0 currently has a bug causing it to not function properly with generic protocol data.

Rascal Model.

HWITL_From_PICPilot.xml -> Flightgear protocol definition for data coming from autopilot.

HWITL_To_PICPilot.xml -> Flightgear protocol definition for data going to autopilot.

FG_To_PICPilot.exe -> Interface application - Source + executable for windows.

    .

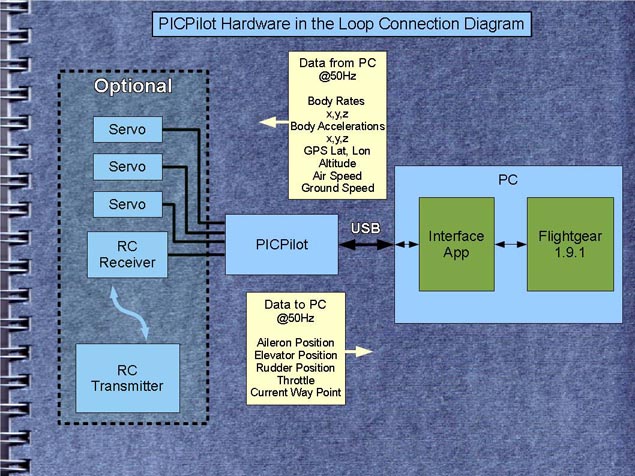

   Hooking It All Up:

         .
    .
    .




   A Note about Models:

         .
    .
    .

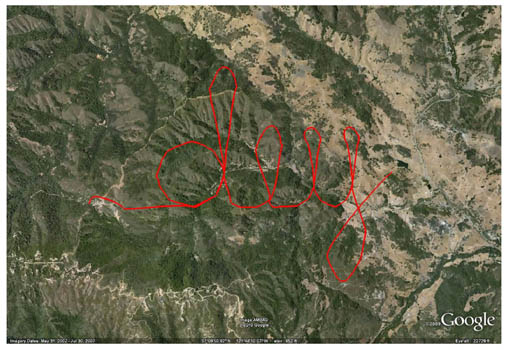

   DIY Drones T3 Run:

         .
    .     .

Notes:
